Solid Edge 2022

Opomba: 12 mesecev podpore in vzdrževanje programske opreme že vključeno v ceno

CAD basic SOLID EDGE 2022 vsebuje popoln 3D modelirnih z skicirko in z sinhrono tehnologijo + dodatno:

• Sheet metal design
• Frame and weldment design

• Plastic parts design

• Jig and fixture design

• Conceptual assembly design
• Standard parts library
• Solid Works data migration
• Inventor data migration
• Pro/Engineer/Creo data migration
• Motion simulation
• 3D printing - preparation and service

CAD advance SOLID EDGE 2022 vsebuje isto kot CAD basic + dodatno:

• Machinery parts library

• 3D scanning
• Generative design
• Photorealistic rendering

CAM SOLID EDGE 2022 vsebuje do 2,5 osne operacije rezkanja, tekoče sodelovanje CAD-CAM na osnovi "master model concept", postprocesing, Tool path and model viewer in knjižnico osnovnih postprocesorjev. Konkretne operacijo (do 2,5 osne obdelave) so:

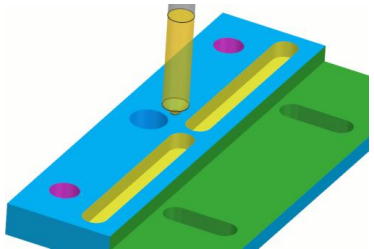

• rezkanje

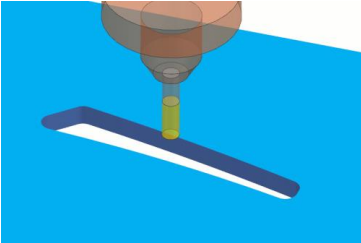

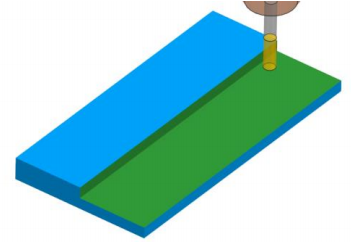

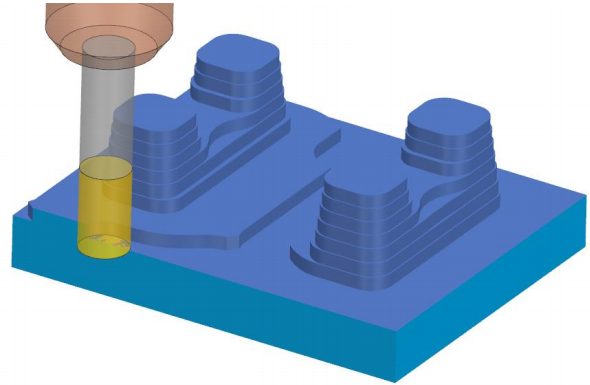

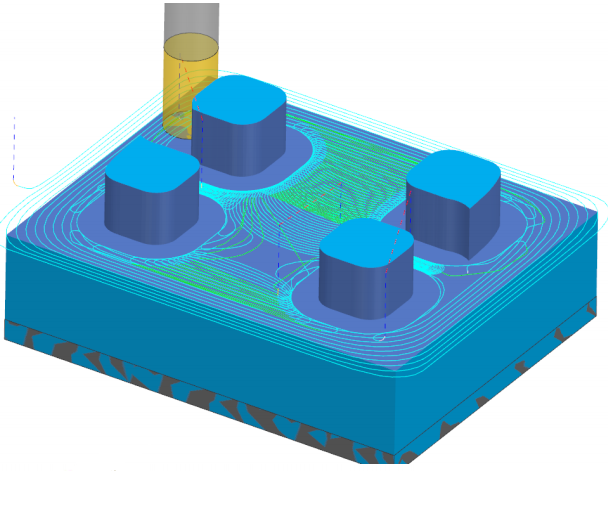

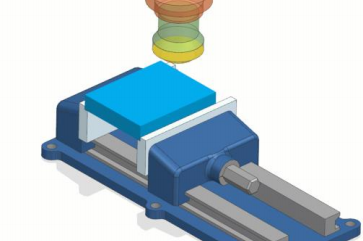

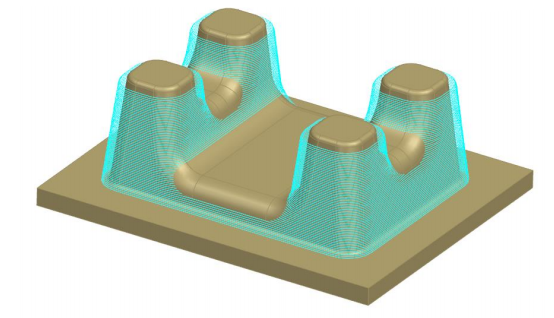

  • Face milling, Pocketing, Slotting, Chamfering, Roughing and Finishing of prismatic geometry, cavity milling, Z Level profile, Adaptive Roughing

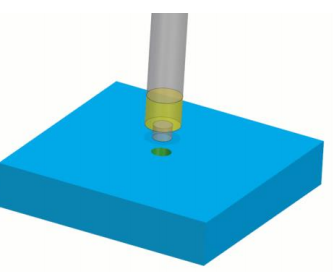

• vrtanje

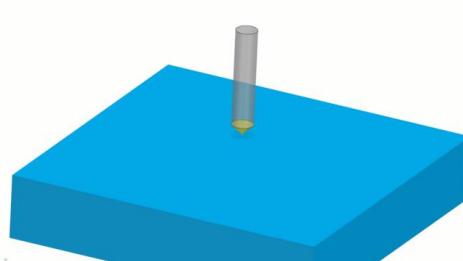

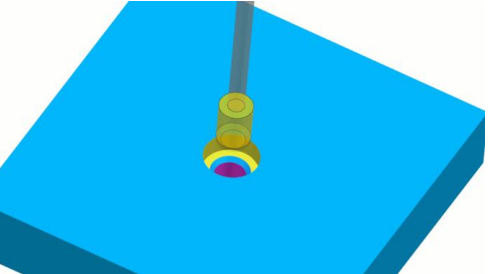

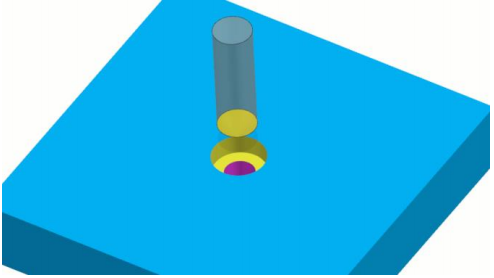

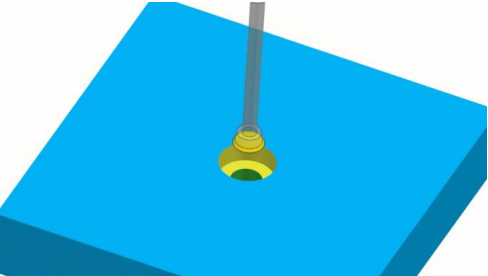

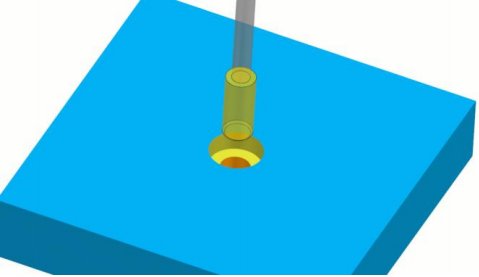

  • Centerdrilling, Spotdrilling, Drilling, Reaming, Boring, Counterboring, Tapping, Hole Milling, Thread Milling
